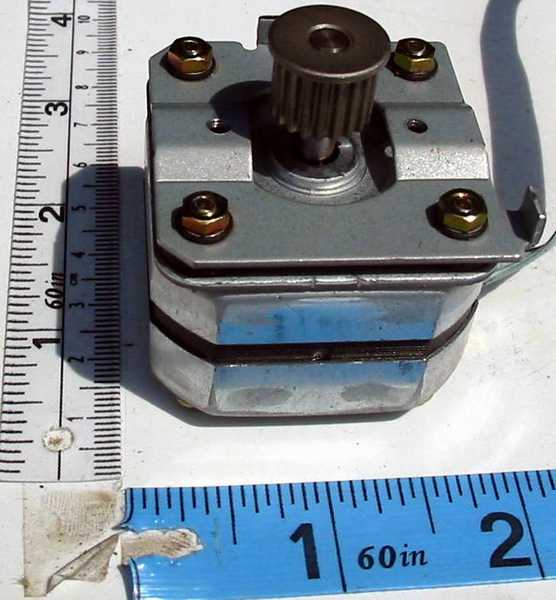

motor:EM-257 generic Stepper with timing belt pulley

$7.19 USD

Stock:4
Qty:
motor-bipolar stepper:EM-257 generic Stepper with timing belt pulley
This is the equivalent to Astrosyn SST-024 with a 10 Ohm coil. These were pulled from an Epson printer assembly. The high holding torque and small pakcage size makes it ideal for small CNC or robotics project. This is the bushing version, not made by Minebea or RepRap
Manufacturer page:generic
Specifications
Nominal Voltage7
Current0.7
Resistance (Ohms)10
Torque (in-oz)44.4
Torque (kg*cm)3.2
Wires4
Conditionpulled
Steps / Revolution200
Step Size (degrees)1.8
NEMA frame size17
QTY available4
Most of the motors and parts found on this site were pulled from recycling operations. Support recycling!
