$5.99 USD
OUT OF STOCK!

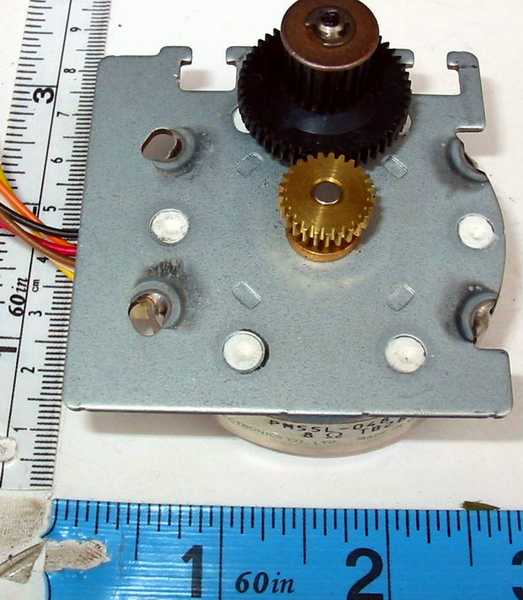

| motor-unipolar stepper:PM55L-048-FMD2 NMB - MAT - Minebea Stepper with geared cog
This is the FMD2 version of the PM55L-048. It has a brass gear with a plastic compound cog/gear. Although part is well identified to be PM55L-048, it does not the same resistance as the datasheet. Perhaps the voltage of this motor is not the specified 24V.
Manufacturer page:NMB - MAT - Minebea
| Specifications | | Resistance (Ohms) | 8 | | Wires | 6 | | Condition | pulled | | Steps / Revolution | 48 | | weight | 243 grams | | Step Size (degrees) | 7.5 |
|
| |
